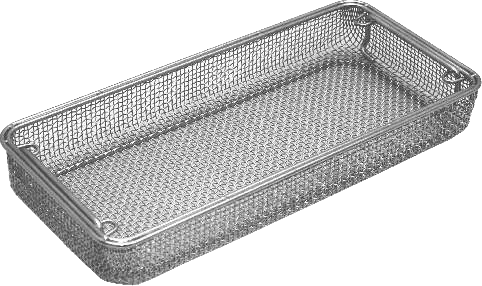

Wire Mesh Trays — Double Frame Protection

The second frame takes the knocks a single frame doesn't survive — for heavy sets and high-turnover CSSDs where trays are stacked and dropped all day.

Wire Mesh TraysCXMT / CXML

Wire Mesh Trays — Double Frame Protection

Double Frame Protection

Material: 304(ASTM)
Steel sheet: 1.0mm
Mesh type: Woven 5.5 x 5.5 x 1.0mm

Sizes

5758 article numbersL × W × H mm

Tray

Row	Article no.	Dimensions
1	CXMT-7010	540 × 255 × 50 mm
2	CXMT-7070	255 × 245 × 50 mm
3	CXMT-7929	500 × 150 × 100 mm
4	CXMT-7014	540 × 255 × 70 mm
5	CXMT-7072	255 × 245 × 60 mm
6	CXMT-7930	850 × 200 × 100 mm
7	CXMT-7015	540 × 255 × 100 mm
8	CXMT-7074	255 × 245 × 70 mm
9	CXMT-7931	355 × 100 × 90 mm
10	CXMT-7020	485 × 255 × 50 mm
11	CXMT-7075	255 × 245 × 100 mm
12	CXMT-7932	440 × 110 × 45 mm
13	CXMT-7022	485 × 255 × 60 mm
14	CXMT-7062	300 × 240 × 60 mm
15	CXMT-7933	440 × 110 × 65 mm
16	CXMT-7024	485 × 255 × 70 mm
17	CXMT-7090	255 × 120 × 50 mm
18	CXMT-7025	485 × 255 × 100 mm
19	CXMT-7092	255 × 120 × 60 mm
20	CXMT-7202	480 × 300 × 65 mm
21	CXMT-7094	255 × 120 × 70 mm
22	CXMT-7040	405 × 255 × 50 mm
23	CXMT-7095	255 × 120 × 100 mm
24	CXMT-7044	405 × 255 × 70 mm
25	CXMT-7928	300 × 120 × 64 mm
26	CXMT-7045	405 × 255 × 100 mm
27	CXMT-9944	400 × 250 × 50 mm
28	CXMT-9936	380 × 190 × 85 mm
29	CXMT-9010	540 × 250 × 50 mm
30	CXMT-9950	400 × 250 × 70 mm
31	CXMT-9952	250 × 240 × 70 mm
32	CXMT-9938	480 × 250 × 50 mm
33	CXMT-9942	400 × 300 × 50 mm
34	CXMT-9951	250 × 190 × 50 mm
35	CXMT-9943	480 × 250 × 70 mm
36	CXMT-9941	400 × 370 × 50 mm
37	CXMT-9949	300 × 250 × 50 mm
38	CXMT-9946	480 × 250 × 100 mm
39	CXMT-9945	450 × 220 × 50 mm
40	CXMT-9954	650 × 650 × 30 mm
41	CXMT-9940	480 × 300 × 50 mm
42	CXMT-9948	250 × 240 × 50 mm
43	CXMT-9947	480 × 250 × 60 mm
44	CXMT-9953	250 × 240 × 60 mm
45	CXMT-9939	355 × 100 × 90 mm
46	CXMT-9937	410 × 260 × 110 mm
47	CXMT-9934	350 × 160 × 50 mm
48	CXMT-9935	260 × 190 × 50 mm
49	CXMT-9050	380 × 250 × 50 mm

Lid (optional)

Row	Article no.	Dimensions
1	CXML-8909	540 × 255 mm
2	CXML-8910	485 × 255 mm
3	CXML-8914	480 × 370 mm
4	CXML-8915	480 × 250 mm
5	CXML-8911	405 × 255 mm
6	CXML-8917	380 × 250 mm
7	CXML-8913	255 × 120 mm
8	CXML-8912	255 × 245 mm
9	CXML-8916	250 × 240 mm
