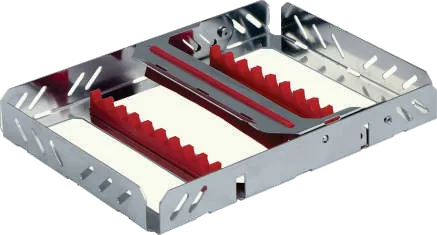

Silicone stringers hold 5 to 20 instruments apart by the shank, so working ends never touch and the count is readable at a glance.
Click the photo to enlarge — technical drawings carry printed dimensions
Bracket-Lock Cassette Trays
Bracket-lock instrument cassettes with silicone stringers
- Material
- 304 (ASTM)
- Height
- 23 mm (all sizes)
- Capacity
- 5 / 7 / 10 / 20 instruments
Sizes
1112 article numbersL × W × H mm| Row | Article no. | Dimensions | Notes |
|---|---|---|---|
| 1 | CXCC-1505 | 180 × 82 × 23 mm | 05 Instruments |
| 2 | CXCC-1507 | 180 × 105 × 23 mm | 07 Instruments |
| 3 | CXCC-1510 | 180 × 135 × 23 mm | 10 Instruments |
| 4 | CXCC-1520 | 265 × 180 × 23 mm | 20 Instruments |
| 5 | CXCK-1505 | 190 × 70 × 23 mm | 05 Instruments |
| 6 | CXCK-1507 | 190 × 96 × 23 mm | 07 Instruments |
| 7 | CXCK-1510 | 190 × 132 × 23 mm | 10 Instruments |
| 8 | CXCK-1520 | 265 × 190 × 23 mm | 20 Instruments |
| 9 | CXCH-1505 | 190 × 82 × 23 mm | 05 Instruments |
| 10 | CXCH-1507 | 190 × 105 × 23 mm | 07 Instruments |
| 11 | CXCH-1510 | 190 × 135 × 23 mm | 10 Instruments |
| 12 | CXCH-1520 | 265 × 190 × 23 mm | 20 Instruments |
Further sizes are manufactured to order — ask us for anything not listed.
Request a quote
Mass, load ratings, validation reports and material certificates are available on request.
